Portable Finger and Palm Print System

 At a Glance    Download

At a Glance

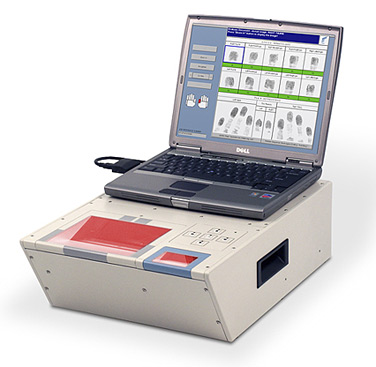

True 500 PPI scanning resolution, superior image quality, rugged design and compact housing make the LITE-Ue livescan device an optimal choice for modern fingerprint and palm print booking solutions. The performance is certified by major law enforcement agencies as well as for compliance with international product safety and other standards.

The LITE-Ue connects via high-speed IEEE 1394 (FireWire) interface to any notebook or PC and runs with software under Windows 2000 and XP. The notebook can even be placed on top of the scanner block thereby forming a system with the smallest footprint available today.

Download LITE-Ue Product Brochure (36.6 KB - PDF)


  • All in one portable point of capture solution for all information during the process of booking a criminal suspect

  • Fast, reliable, rugged, yet lightweight and compact

  • High quality rolled and flat fingerprint capturing

  • Built in automated fingerprint quality checks

  • Fully certified to comply with FBI and other major international agencies’ standards

  • Software Sequence and Quality Checks - Quality checks that assess image quality and provide the user with immediate feedback

  • Image Clarity - Captures high quality fingerprint images regardless of skin type

  • Ideal for systems integrators and VARs serving the law enforcement markets



System Components   LITE-Ue scanner, Livescan CE/CM/CC Software, Dell Desktop or Laptop PC with MS Windows XP, IEEE Firewire, interface cable, power supply with AC cable, Operator Manual, and Training DVD available

Fingerprints 10 finger flats and rolls

Palm Prints   Upper palm, lower palm side/writers palm

Demographics All textual and numerical data (name, date of birth, gender, eye color) in fully flexible input screens with automatic validation for correctness, drop down lists for predefined entries and automatic import with optional demographics interface

Resolution   500 PPI +/- 5 pixels in X and Y Axis

Active Image Area (vertical x horizontal)

1.5" x 1.6" (38 mm x 41 mm) for rolled images; up to max. 4.6" x 5.0" (117 mm x 127 mm) for flats and palm prints

Dynamic Range   8 bits, 256 grayscale

Image Certification
CJIS-RS-0010 (V7) Appendix F certification

Output (Digital)
  IEEE 1394 FireWire, Ethernet output of the system to an AFIS (FTP, SMTP)

Power   AC 100V-240V, 50/60 HZ, autosensing, Max. 150 VA

Operating Temperature Range   59?F to 95?F (15?C to 35?C)

Humidity Range   10-80% non-condensing, splash-resistant workspace

Weight (scanner block)   28.6 lbs (13.0 kg)

Dimensions (H x L x W) (scanner block)   5.9" x 19.7" x 13.8" (15 x 50 x 35 cm)

Data Transmission   Produces ANSI/NIST compliant Electronic Fingerprint Transmission (EFT) files and card format; Communications: TCP/IP, LAN, NFS, FTP, SMTP email and VPN

Agency Listings   FCC, UL, CE

Components Unique to this system   Only 500 PPI palm/10-print scanner combination available, portable

Optional Components

Electronic signature pad, travel case, supplies, ruggedized cabinet/kiosk with TFT monitor, touchscreen, import/export demographics interfaces, AFIS interfaces, and digital face capture solution
