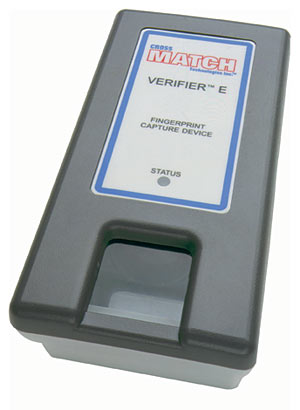

  Verifier E

 At a Glance    Download


At a Glance

Cross Match Technologies’ Verifier E is unlike any other product available today. It’s a “smart” scanner using the latest technology in fingerprint readers with built-in intelligence for image quality and performance. An embedded algorithm counts and analyzes minutiae ridges to ensure that only a high quality print is captured every time.


The Verifier E has an online capability connecting to existing Ethernet networks and is viewable through any web-browser or custom application using standard TCP/IP protocol. The Ethernet connection makes the Verifier E faster and easier to integrate into high volume enrollment, identification and verification projects. The universal Ethernet connection also saves organizations significant capital and operational expenses since many Verifier E scanners can be connected to just one computer – unlike USB scanners, which require one computer to one scanner. A Verifier E Web Center enables you to configure the scanner simply using your browser.

Download Verifier E Product Brochure (184 KB - PDF)

         Features

  • Built-in intelligence ensures a quality print every time

  • Ethernet connection allows for fast results, seamless integration and cost savings

  • Unique features promote versatility and ease of use

  • Can be easily added to an existing Ethernet system

  • Generous Platen Area

  • Ethernet Operation

  • Finger Detect

  • Heated Prism

  • Smart Finger Print Recognition

  • Web Browser Interface

  • ANSI-NIST Compliant

  • Rugged, Durable & Portable

  • Consistent High-Quality Forensic Flat Finger Images

  • Low Maintenance Requirements

  • Patented Aspherical Lenses

¡ÅѺÊÙè´éÒ¹º¹

         Specifications

Resolution   500 ppi +/- 5 pixels in X and Y axis = 19.7 points-per-millimeter


Active Image Area .96” x 1.00” (24.4 mm x 25.4 mm)


Image Certification   ANSI-NIST Compliant


Digital Output Universal Serial Bus (USB)


Power   Voltage: 12 -15 VDC


Scanner Power Consumption < 5 Watts


Scanner Power Converter   15 VDC


Scanner Interface Ethernet


Scanner Interface Cable   Ethernet


Fingerprint Capturing With live-display on notebook or PC via the capture function of the driver software


Scanner Dynamic Range   8 bit max 256 Gray Scale


Operating Temperature Range 0?F to 122?F (-18?C to 50? C)


Humidity Range   10-90% non-condensing, splash-resistant.


Weight .9 lbs (.41 kg)


Dimensions (H x L x W)   Height: 2.45”, Width: 3.25”, Length: 6.38” (62 mm x 83 mm x 162 mm)


Data Transmission Modulation Transfer Function: 50% at 10 cycles per millimeter at finger platen


Agency Listings   FCC, UL, CE


Optional Components Kiosk-ready version
